INA K81111-TV Thrust roller bearings
Also known as : K81111-TV
- Inside Diameter: 55 mm
- Outside Diameter: 78 mm
- Width: 6 mm
- Basic dynamic load rating: 90 kN
- Basic static load rating: 300 kN
INA K81111-TV
INA K81111-TV details

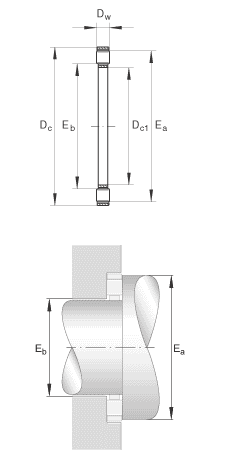

| Number | K81111-TV | |
|---|---|---|
| Type | Thrust roller bearings | |
| Dc1 | 55 mm | |
| Dc | 78 mm | |
| Dw | 6 mm | |
| Ea | 77 mm | |
| Eb | 57 mm | |
| m | 0,045 kg | Mass |
| Ca | 90000 N | Basic dynamic load rating, axial |
| C0a | 300000 N | Basic static load rating, axial |
| Cua | 31000 N | Fatigue limit load |
| nG | 4350 1/min | Limiting speed |
| nB | 1350 1/min | Reference speed |
| GS81111 | Allocated housing locating washer | |
| WS81111 | Allocated shaft locating washer | |
| LS5578 | Allocated bearing washer |
INA K81111-TV bearing cross reference
81222-TV
55 mmx 78 mmx6 mm
89326-M
55 mmx 78 mmx6 mm
K81217-TV
55 mmx 78 mmx6 mm
K81214-TV
55 mmx 78 mmx6 mm
K81212-TV
55 mmx 78 mmx6 mm
K81211-TV
55 mmx 78 mmx6 mm
K81207-TV
55 mmx 78 mmx6 mm
K81160-M
55 mmx 78 mmx6 mm
K81148-M
55 mmx 78 mmx6 mm
K81144-M
55 mmx 78 mmx6 mm
K81136-M
55 mmx 78 mmx6 mm
