INA K89328-M Thrust roller bearings
Also known as : K89328-M
- Inside Diameter: 140 mm
- Outside Diameter: 240 mm
- Width: 19 mm
- Basic dynamic load rating: 820 kN
- Basic static load rating: 3200 kN
INA K89328-M

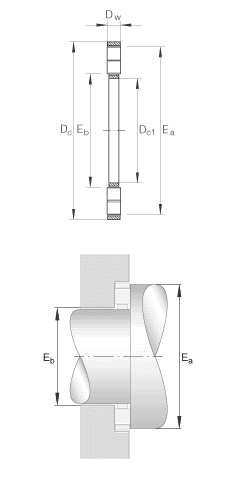

INA K89328-M details
| Number | K89328-M | |
|---|---|---|
| Type | Thrust roller bearings | |
| Dc1 | 140 mm | |
| Dc | 240 mm | |
| Dw | 19 mm | |
| Ea | 234 mm | |
| Eb | 152 mm | |
| m | 2,57 kg | Mass |
| Ca | 820000 N | Basic dynamic load rating, axial |
| C0a | 3200000 N | Basic static load rating, axial |
| Cua | 290000 N | Fatigue limit load |
| nG | 1520 1/min | Limiting speed |
| nB | 570 1/min | Reference speed |
| GS89328 | Allocated housing locating washer | |
| WS89328 | Allocated shaft locating washer |
INA K89328-M bearing cross reference
81222-TV
140 mmx 240 mmx19 mm
89326-M
140 mmx 240 mmx19 mm
K81217-TV
140 mmx 240 mmx19 mm
K81214-TV
140 mmx 240 mmx19 mm
K81212-TV
140 mmx 240 mmx19 mm
K81211-TV
140 mmx 240 mmx19 mm
K81207-TV
140 mmx 240 mmx19 mm
K81160-M
140 mmx 240 mmx19 mm
K81148-M
140 mmx 240 mmx19 mm
K81144-M
140 mmx 240 mmx19 mm
K81136-M
140 mmx 240 mmx19 mm
