SKF 29413E Thrust roller bearings
Also known as : 29413E
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 45 mm
- Basic dynamic load rating: 455 kN
- Basic static load rating: 1080 kN
SKF 29413E

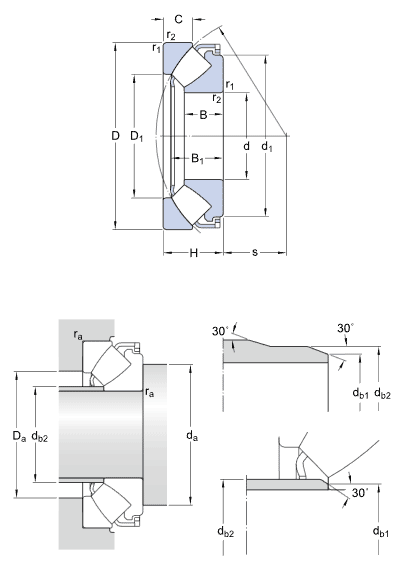

SKF 29413E details
| model | 29413E |
|---|---|
| d | 65 mm |
| D | 140 mm |
| H | 45 mm |
| d1 ≈ | 120 mm |
| D1 ≈ | 91.5 mm |
| B | 29.5 mm |
| B1 | 39.8 mm |
| C | 22 mm |
| s | 42 mm |
| r1,2 min. | 2 mm |
| da min. | 100 mm |
| db1 max. | 72 mm |
| db2 max. | 72 mm |
| Da max. | 117 mm |
| ra max. | 2 mm |
| Calculation data | |
| C | 455 kN, Basic dynamic load rating |
| C0 | 1080 kN, Basic static load rating |
| Pu | 137 kN, Fatigue load limit |
| Reference speed | 2600 r/min |
| Limiting speed | 4800 r/min |
| A | 0.11, Minimum axial load factor |
| Mass | 3.2 kg |
