SKF 29328E Thrust roller bearings
Also known as : 29328E
- Inside Diameter: 140 mm
- Outside Diameter: 240 mm
- Width: 60 mm
- Basic dynamic load rating: 980 kN
- Basic static load rating: 2850 kN
SKF 29328E

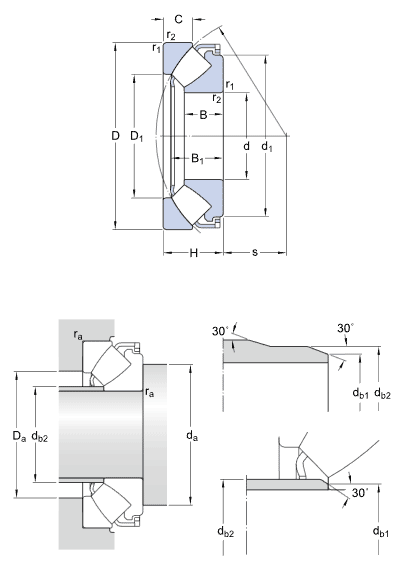

SKF 29328E details
| model | 29328E |
|---|---|
| d | 140 mm |
| D | 240 mm |
| H | 60 mm |
| d1 ≈ | 216 mm |
| D1 ≈ | 177 mm |
| B | 38.5 mm |
| B1 | 54 mm |
| C | 30 mm |
| s | 82 mm |
| r1,2 min. | 2.1 mm |
| da min. | 185 mm |
| db1 max. | 148 mm |
| db2 max. | 154 mm |
| Da max. | 208 mm |
| ra max. | 2 mm |
| Calculation data | |
| C | 980 kN, Basic dynamic load rating |
| C0 | 2850 kN, Basic static load rating |
| Pu | 315 kN, Fatigue load limit |
| Reference speed | 1500 r/min |
| Limiting speed | 2600 r/min |
| A | 0.77, Minimum axial load factor |
| Mass | 10.5 kg |
SKF 29328E bearing cross reference
81222-TV
140 mmx 240 mmx60 mm
89326-M
140 mmx 240 mmx60 mm
K81217-TV
140 mmx 240 mmx60 mm
K81214-TV
140 mmx 240 mmx60 mm
K81212-TV
140 mmx 240 mmx60 mm
K81211-TV
140 mmx 240 mmx60 mm
K81207-TV
140 mmx 240 mmx60 mm
K81160-M
140 mmx 240 mmx60 mm
K81148-M
140 mmx 240 mmx60 mm
K81144-M
140 mmx 240 mmx60 mm
K81136-M
140 mmx 240 mmx60 mm
