SKF 293/710EM Thrust roller bearings
Also known as : 293/710EM
- Inside Diameter: 710 mm
- Outside Diameter: 1060 mm
- Width: 212 mm
- Basic dynamic load rating: 9950 kN
- Basic static load rating: 45500 kN
SKF 293/710EM

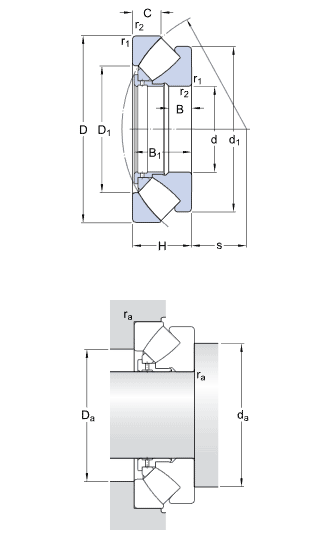

SKF 293/710EM details
| model | 293/710EM |
|---|---|
| d | 710 mm |
| D | 1060 mm |
| H | 212 mm |
| d1 ≈ | 985 mm |
| D1 ≈ | 855 mm |
| B | 74 mm |
| B1 | 205 mm |
| C | 103 mm |
| s | 404 mm |
| r1,2 min. | 9.5 mm |
| da min. | 890 mm |
| Da max. | 960 mm |
| ra max. | 8 mm |
| Calculation data | |
| C | 9950 kN, Basic dynamic load rating |
| C0 | 45500 kN, Basic static load rating |
| Pu | 3400 kN, Fatigue load limit |
| Reference speed | 280 r/min |
| Limiting speed | 500 r/min |
| A | 200, Minimum axial load factor |
| Mass | 610 kg |
