INA GE70-AW Spherical Plain Bearing
Also known as : GE70-AW
- Inside Diameter: 70 mm
- Outside Diameter: 160 mm
- Width: 50 mm
- Basic dynamic load rating: 2420 kN
- Basic static load rating: 4030 kN
INA GE70-AW
INA GE70-AW details

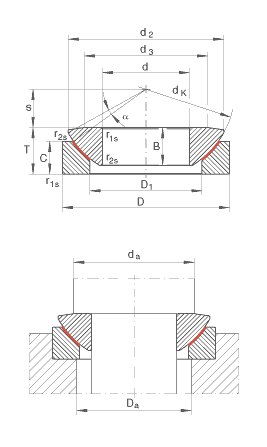

| Number | GE70-AW | |
|---|---|---|
| Type | Spherical plain bearings | |
| d | 70 mm | Tolerance: 0/-0,015 |
| D | 160 mm | Tolerance: 0/-0,025 |
| T | 50 mm | Tolerance: 0/-0,4 |
| B | 40 mm | Tolerance: 0/-0,3 |
| C | 36 mm | Tolerance: 0/-0,3 |
| D1 | 95 mm | |
| Da min | 102 mm | |
| d2 | 149,5 mm | |
| d3 | 121 mm | |
| da max | 121 mm | |
| dK | 170 mm | |
| r1s min | 1 mm | Chamfer dimension |
| r2s min | 0,3 mm | Chamfer dimension |
| s | 35 mm | |
| α | 6 ° | |
| m | 5,7 kg | Mass |
| Ca | 2420000 N | Basic dynamic load rating, axial |
| C0a | 4030000 N | Basic static load rating, axial |
