INA GE70-SX Spherical Plain Bearing
Also known as : GE70-SX
- Inside Diameter: 70 mm
- Outside Diameter: 110 mm
- Width: 25 mm
- Basic dynamic load rating: 209 kN
- Basic static load rating: 1040 kN
INA GE70-SX

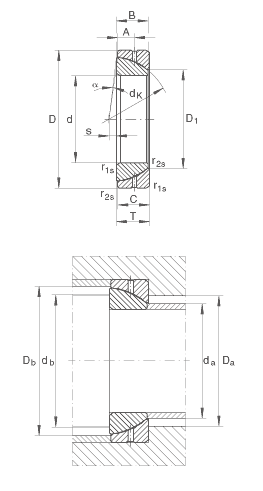

INA GE70-SX details
| Number | GE70-SX | |
|---|---|---|
| Type | Spherical plain bearings | |
| d | 70 mm | Tolerance: 0/-0,015 |
| D | 110 mm | Tolerance: 0/-0,018 |
| T | 25 mm | Tolerance: +/-0,25 |
| A | 12,5 mm | |
| B | 24 mm | Tolerance: 0/-0,3 |
| C | 24 mm | Tolerance: 0/-0,3 |
| D1 | 82,2 mm | |
| Da min | 90 mm | |
| Db min | 104 mm | |
| da max | 80,9 mm | |
| db max | 92 mm | |
| dK | 102 mm | |
| r1s min | 1,5 mm | Chamfer dimension |
| r2s min | 0,6 mm | Chamfer dimension |
| s | 7 mm | |
| α | 1,1 ° | |
| m | 1,1 kg | Mass |
| Cr | 209000 N | Basic dynamic load rating, radial |
| C0r | 1040000 N | Basic static load rating, radial |
