INA GE240-FW-2RS

INA GE240-FW-2RS Spherical Plain Bearing

Also known as : GE240-FW-2RS

Inside Diameter: 240 mm
Outside Diameter: 370 mm
Width: 190 mm
Basic dynamic load rating: 8580 kN
Basic static load rating: 14300 kN

INA GE240-FW-2RS

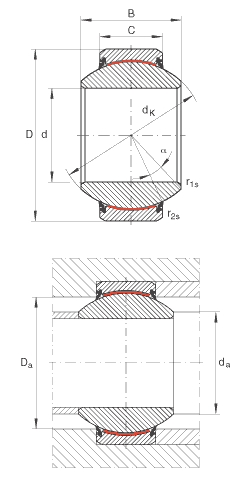

INA GE240-FW-2RS details

Number	GE240-FW-2RS
Type	Spherical plain bearings
d	240 mm	Tolerance: 0/-0,03
D	370 mm	Tolerance: 0/-0,04
B	190 mm	Tolerance: 0/-0,35
C	110 mm	Tolerance: 0/-0,8
D_{a min}	319 mm
d_{a max}	263,6 mm
d_K	325 mm
r_{1s min}	1,1 mm	Chamfer dimension
r_{2s min}	1,1 mm	Chamfer dimension
α	15 °
m	64 kg	Mass
C_r	8580000 N	Basic dynamic load rating, radial
C_0r	14300000 N	Basic static load rating, radial
