INA GE6-FW

INA GE6-FW Spherical Plain Bearing

Also known as : GE6-FW

Inside Diameter: 6 mm
Outside Diameter: 16 mm
Width: 9 mm
Basic dynamic load rating: 5.85 kN
Basic static load rating: 14.6 kN

INA GE6-FW

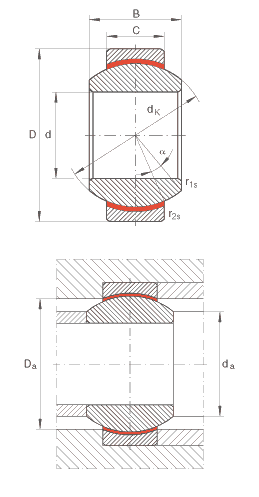

INA GE6-FW details

Number	GE6-FW
Type	Spherical plain bearings
d	6 mm	Tolerance: 0/-0,008
D	16 mm	Tolerance: 0/-0,008
B	9 mm	Tolerance: 0/-0,12
C	5 mm	Tolerance: 0/-0,24
D_{a min}	12,5 mm
d_{a max}	9,3 mm
d_K	13 mm
r_{1s min}	0,3 mm	Chamfer dimension
r_{2s min}	0,3 mm	Chamfer dimension
α	21 °
m	0,009 kg	Mass
C_r	5850 N	Basic dynamic load rating, radial
C_0r	14600 N	Basic static load rating, radial
