INA GE35-UK-2RS

INA GE35-UK-2RS Spherical Plain Bearing

Also known as : GE35-UK-2RS

Inside Diameter: 35 mm
Outside Diameter: 55 mm
Width: 25 mm
Basic dynamic load rating: 212 kN
Basic static load rating: 353 kN

INA GE35-UK-2RS

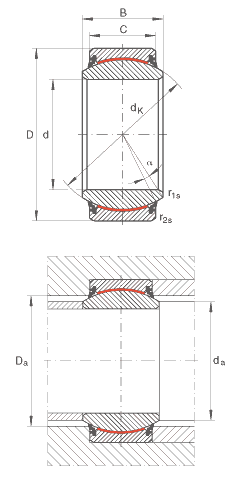

INA GE35-UK-2RS details

Number	GE35-UK-2RS
Type	Spherical plain bearings
d	35 mm	Tolerance: 0/-0,012
D	55 mm	Tolerance: 0/-0,013
B	25 mm	Tolerance: 0/-0,12
C	20 mm	Tolerance: 0/-0,3
D_{a min}	44,5 mm
d_{a max}	39,7 mm
d_K	47 mm
r_{1s min}	0,6 mm	Chamfer dimension
r_{2s min}	1 mm	Chamfer dimension
α	6 °
m	0,22 kg	Mass
C_r	212000 N	Basic dynamic load rating, radial
C_0r	353000 N	Basic static load rating, radial
