INA GE25-UK

INA GE25-UK Spherical Plain Bearing

Also known as : GE25-UK

Inside Diameter: 25 mm
Outside Diameter: 42 mm
Width: 20 mm
Basic dynamic load rating: 51.1 kN
Basic static load rating: 128 kN

INA GE25-UK

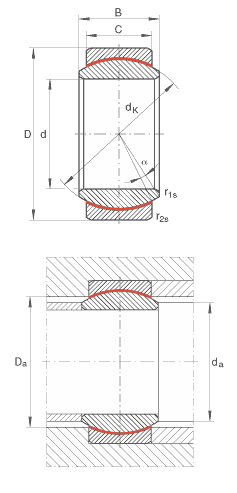

INA GE25-UK details

Number	GE25-UK
Type	Spherical plain bearings
d	25 mm	Tolerance: 0/-0,01
D	42 mm	Tolerance: 0/-0,011
B	20 mm	Tolerance: 0/-0,12
C	16 mm	Tolerance: 0/-0,24
D_{a min}	33 mm
d_{a max}	29,3 mm
d_K	35,5 mm
r_{1s min}	0,6 mm	Chamfer dimension
r_{2s min}	0,6 mm	Chamfer dimension
α	7 °
m	0,11 kg	Mass
C_r	51100 N	Basic dynamic load rating, radial
C_0r	128000 N	Basic static load rating, radial
