INA GE10-UK

INA GE10-UK Spherical Plain Bearing

Also known as : GE10-UK

Inside Diameter: 10 mm
Outside Diameter: 19 mm
Width: 9 mm
Basic dynamic load rating: 8.64 kN
Basic static load rating: 21.6 kN

INA GE10-UK

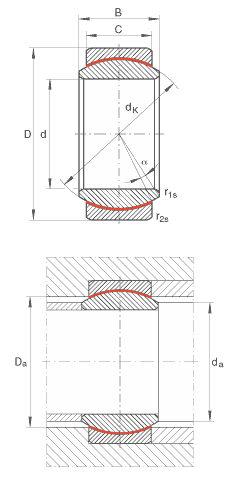

INA GE10-UK details

Number	GE10-UK
Type	Spherical plain bearings
d	10 mm	Tolerance: 0/-0,008
D	19 mm	Tolerance: 0/-0,009
B	9 mm	Tolerance: 0/-0,12
C	6 mm	Tolerance: 0/-0,24
D_{a min}	15,5 mm
d_{a max}	13,2 mm
d_K	16 mm
r_{1s min}	0,3 mm	Chamfer dimension
r_{2s min}	0,3 mm	Chamfer dimension
α	12 °
m	0,011 kg	Mass
C_r	8640 N	Basic dynamic load rating, radial
C_0r	21600 N	Basic static load rating, radial
