INA GE44-ZO

INA GE44-ZO Spherical Plain Bearing

Also known as : GE44-ZO

Inside Diameter: 44.45 mm
Outside Diameter: 71.438 mm
Width: 38.887 mm
Basic dynamic load rating: 171 kN
Basic static load rating: 512 kN

INA GE44-ZO

INA GE44-ZO details

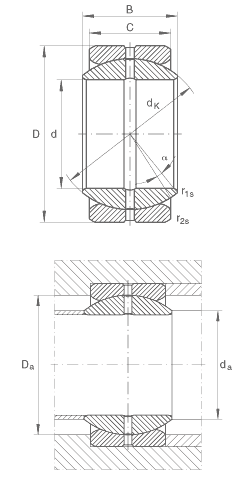

Number	GE44-ZO
Type	Spherical plain bearings
d	44,45 mm	Tolerance: 0/-0,012
D	71,438 mm	Tolerance: 0/-0,013
B	38,887 mm	Tolerance: 0/-0,12
C	33,325 mm	Tolerance: 0/-0,3
D_{a min}	57 mm
d_{a max}	50,7 mm
d_K	63,9 mm
r_{1s min}	0,6 mm	Chamfer dimension
r_{2s min}	1 mm	Chamfer dimension
α	6 °
m	0,62 kg	Mass
C_r	171000 N	Basic dynamic load rating, radial
C_0r	512000 N	Basic static load rating, radial
