INA GE45-HO-2RS

INA GE45-HO-2RS Spherical Plain Bearing

Also known as : GE45-HO-2RS

Inside Diameter: 45 mm
Outside Diameter: 68 mm
Width: 40 mm
Basic dynamic load rating: 128 kN
Basic static load rating: 639 kN

INA GE45-HO-2RS

INA GE45-HO-2RS details

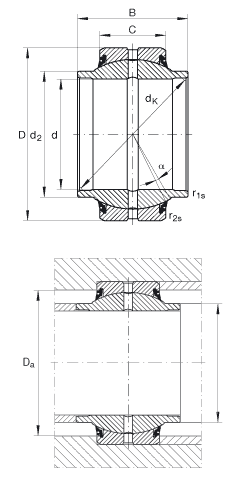

Number	GE45-HO-2RS
Type	Spherical plain bearings
d	45 mm	Tolerance: 0/-0,012
D	68 mm	Tolerance: 0/-0,013
B	40 mm	Tolerance: +/-0,3
C	25 mm	Tolerance: 0/-0,3
D_{a min}	57 mm
d₂	51,5 mm
d_K	60 mm
r_{1s min}	0,3 mm	Chamfer dimension
r_{2s min}	1 mm	Chamfer dimension
α	3 °
m	0,43 kg	Mass
C_r	128000 N	Basic dynamic load rating, radial
C_0r	639000 N	Basic static load rating, radial
