INA GE125-LO Spherical Plain Bearing
Also known as : GE125-LO
- Inside Diameter: 125 mm
- Outside Diameter: 180 mm
- Width: 125 mm
- Basic dynamic load rating: 952 kN
- Basic static load rating: 4760 kN
INA GE125-LO
INA GE125-LO details

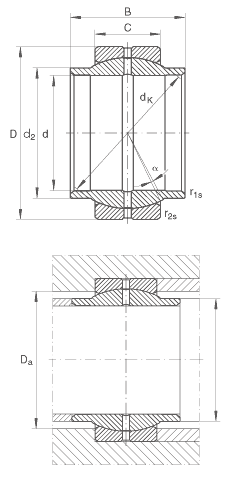

| Number | GE125-LO | |
|---|---|---|
| Type | Spherical plain bearings | |
| d | 125 mm | Tolerance: +0,04/0 |
| D | 180 mm | Tolerance: 0/-0,025 |
| B | 125 mm | Tolerance: 0/-0,4 |
| C | 70 mm | Tolerance: 0/-0,5 |
| Da min | 150 mm | |
| d2 | 138 mm | d2 = da max |
| dK | 160 mm | |
| r1s min | 1 mm | Chamfer dimension |
| r2s min | 1 mm | Chamfer dimension |
| α | 4 ° | |
| m | 8,1 kg | Mass |
| Cr | 952000 N | Basic dynamic load rating, radial |
| C0r | 4760000 N | Basic static load rating, radial |
