INA GE14-PB

INA GE14-PB Spherical Plain Bearing

Also known as : GE14-PB

Inside Diameter: 14 mm
Outside Diameter: 28 mm
Width: 19 mm
Basic dynamic load rating: 17.1 kN
Basic static load rating: 42.9 kN

INA GE14-PB

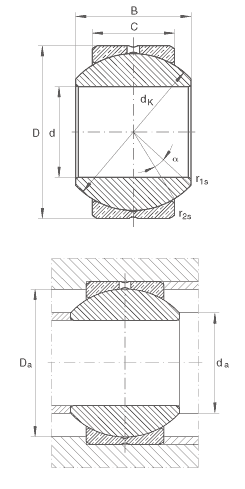

INA GE14-PB details

Number	GE14-PB
Type	Spherical plain bearings
d	14 mm	Bore tolerance: H7 (arithmetic mean value) Tolerance: +0,018/0
D	28 mm	Deviation from DIN 12240-1, dimension series K Tolerance: 0/-0,009
B	19 mm	Tolerance: 0/-0,12
C	13,5 mm	Tolerance: 0/-0,24
D_{a min}	22,5 mm
d_{a max}	16,8 mm
d_K	25,4 mm
r_{1s min}	0,3 mm	Chamfer dimension
r_{2s min}	0,3 mm	Chamfer dimension
α	16 °
m	0,055 kg	Mass
C_r	17100 N	Basic dynamic load rating, radial
C_0r	42900 N	Basic static load rating, radial
