INA GE160-FO-2RS

INA GE160-FO-2RS Spherical Plain Bearing

Also known as : GE160-FO-2RS

Inside Diameter: 160 mm
Outside Diameter: 260 mm
Width: 135 mm
Basic dynamic load rating: 1530 kN
Basic static load rating: 7650 kN

INA GE160-FO-2RS

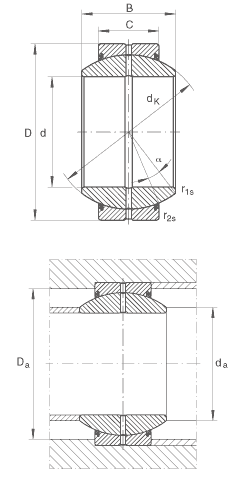

INA GE160-FO-2RS details

Number	GE160-FO-2RS
Type	Spherical plain bearings
d	160 mm	Tolerance: 0/-0,025
D	260 mm	Tolerance: 0/-0,035
B	135 mm	Tolerance: 0/-0,25
C	80 mm	Tolerance: 0/-0,7
D_{a min}	219 mm
d_{a max}	180 mm
d_K	225 mm
r_{1s min}	1 mm	Chamfer dimension
r_{2s min}	1,1 mm	Chamfer dimension
α	16 °
m	24,7 kg	Mass
C_r	1530000 N	Basic dynamic load rating, radial
C_0r	7650000 N	Basic static load rating, radial
