INA GE70-DO-2RS

INA GE70-DO-2RS Spherical Plain Bearing

Also known as : GE70-DO-2RS

Inside Diameter: 70 mm
Outside Diameter: 105 mm
Width: 49 mm
Basic dynamic load rating: 313 kN
Basic static load rating: 1560 kN

INA GE70-DO-2RS

INA GE70-DO-2RS details

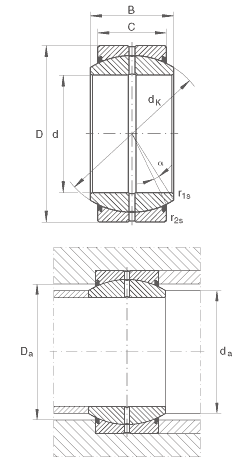

Number	GE70-DO-2RS
Type	Spherical plain bearings
d	70 mm	Tolerance: 0/-0,015
D	105 mm	Tolerance: 0/-0,015
B	49 mm	Tolerance: 0/-0,15
C	40 mm	Tolerance: 0/-0,4
D_{a min}	87 mm
d_{a max}	77,8 mm
d_K	92 mm
r_{1s min}	1 mm	Chamfer dimension
r_{2s min}	1 mm	Chamfer dimension
α	6 °
m	1,5 kg	Mass
C_r	313000 N	Basic dynamic load rating, radial
C_0r	1560000 N	Basic static load rating, radial
