INA GE360-DO

INA GE360-DO Spherical Plain Bearing

Also known as : GE360-DO

Inside Diameter: 360 mm
Outside Diameter: 480 mm
Width: 160 mm
Basic dynamic load rating: 4830 kN
Basic static load rating: 24200 kN

INA GE360-DO

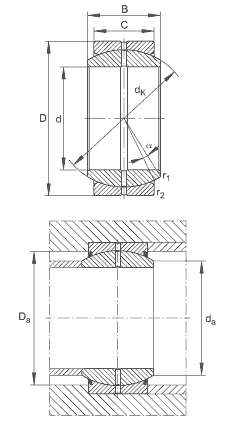

INA GE360-DO details

Number	GE360-DO
Type	Spherical plain bearings
d	360 mm	Tolerance: 0/-0,04
D	480 mm	Tolerance: 0/-0,045
B	160 mm	Tolerance: 0/-0,4
C	135 mm	Tolerance: 0/-0,9
D_{a min}	403 mm	Da max = Da min + 20 mm
d_{a max}	388,3 mm
d_K	420 mm
r_{1s min}	1,1 mm	Chamfer dimension
r_{2s min}	3 mm	Chamfer dimension
α	3,6 °
m	84,2 kg	Mass
C_r	4830000 N	Basic dynamic load rating, radial
C_0r	24200000 N	Basic static load rating, radial
