IKO GE220GS Spherical Plain Bearing
Also known as : GE220GS
- Inside Diameter: 220 mm
- Outside Diameter: 340 mm
- Width: 175 mm
- Basic dynamic load rating: 2940 kN
- Basic static load rating: 17700 kN
IKO GE220GS

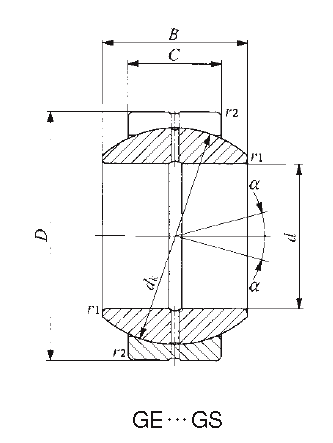

IKO GE220GS details
| Identification number | GE220GS |
|---|---|
| Type | Spherical plain bearings |
| Mass | 51.3 kg |
| d | 220 mm |
| D | 340 mm |
| B | 175 |
| C | 100 mm |
| dk | 300 mm |
| r1s min | 1.1 mm |
| r2s min | 1.1 mm |
| Permissible tilting angle degree a | 16 |
| Dynamic load capacity | 2940 kN |
| Static load capacity | 17700 kN |
IKO GE220GS bearing cross reference
GE160-AX
220 mmx 340 mmx 175 mm
GE140-AX
220 mmx 340 mmx 175 mm
GE70-AX
220 mmx 340 mmx 175 mm
GE60-AX
220 mmx 340 mmx 175 mm
GE50-AX
220 mmx 340 mmx 175 mm
GE40-AX
220 mmx 340 mmx 175 mm
GE30-AX
220 mmx 340 mmx 175 mm
GE25-AX
220 mmx 340 mmx 175 mm
GE17-AX
220 mmx 340 mmx 175 mm
GE15-AX
220 mmx 340 mmx 175 mm
GE10-AX
220 mmx 340 mmx 175 mm
