INA GE440-DW-2RS2

INA GE440-DW-2RS2 Spherical Plain Bearing

Also known as : GE440-DW-2RS2

Inside Diameter: 440 mm
Outside Diameter: 600 mm
Width: 218 mm
Basic dynamic load rating: 24490 kN
Basic static load rating: 40820 kN

INA GE440-DW-2RS2

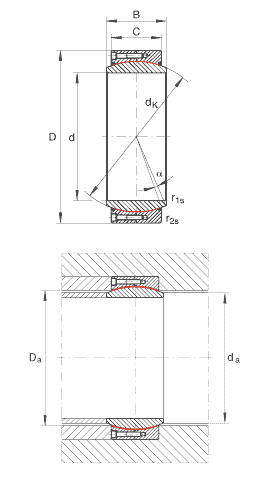

INA GE440-DW-2RS2 details

Number	GE440-DW-2RS2
Type	Spherical plain bearings
d	440 mm	Tolerance: 0/-0,045
D	600 mm	Tolerance: 0/-0,05
B	218 mm	Tolerance: 0/-0,45
C	185 mm	Tolerance: 0/-1
D_{a min}	491 mm
d_{a max}	472 mm
d_K	520 mm
r_{1s min}	1,5 mm	Chamfer dimension
r_{2s min}	4 mm	Chamfer dimension
α	3,9 °
m	194 kg	Mass
C_r	24490000 N	Basic dynamic load rating, radial
C_0r	40820000 N	Basic static load rating, radial
		The screw design is only valid for the basic dynamic load rating C. If the load is greater, the outer ring halves must be supported by lateral clamping covers.
