INA GE10-FO

INA GE10-FO Spherical Plain Bearing

Also known as : GE10-FO

Inside Diameter: 10 mm
Outside Diameter: 22 mm
Width: 12 mm
Basic dynamic load rating: 10.8 kN
Basic static load rating: 54 kN

INA GE10-FO

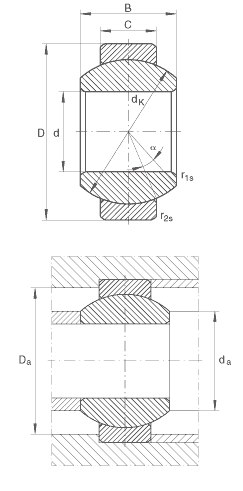

INA GE10-FO details

Number	GE10-FO
Type	Spherical plain bearings
d	10 mm	Tolerance: 0/-0,008
D	22 mm	Tolerance: 0/-0,009
B	12 mm	Tolerance: 0/-0,12
C	7 mm	Tolerance: 0/-0,24
D_{a min}	17,5 mm
d_{a max}	13,4 mm
d_K	18 mm	No lubrication groove on spherical inner ring surface
r_{1s min}	0,3 mm	Chamfer dimension
r_{2s min}	0,3 mm	Chamfer dimension
α	18 °
m	0,02 kg	Mass
C_r	10800 N	Basic dynamic load rating, radial
C_0r	54000 N	Basic static load rating, radial
