INA GE100-DO

INA GE100-DO Spherical Plain Bearing

Also known as : GE100-DO

Inside Diameter: 100 mm
Outside Diameter: 150 mm
Width: 70 mm
Basic dynamic load rating: 608 kN
Basic static load rating: 3040 kN

INA GE100-DO

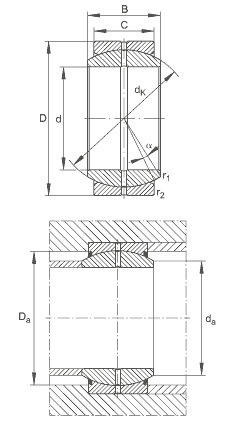

INA GE100-DO details

Number	GE100-DO
Type	Spherical plain bearings
d	100 mm	Tolerance: 0/-0,02
D	150 mm	Tolerance: 0/-0,018
B	70 mm	Tolerance: 0/-0,2
C	55 mm	Tolerance: 0/-0,5
D_{a min}	123 mm
d_{a max}	109,5 mm
d_K	130 mm
r_{1s min}	1 mm	Chamfer dimension
r_{2s min}	1 mm	Chamfer dimension
α	7 °
m	4,3 kg	Mass
C_r	608000 N	Basic dynamic load rating, radial
C_0r	3040000 N	Basic static load rating, radial
