IKO GE70ES Spherical Plain Bearing
Also known as : GE70ES
- Inside Diameter: 70 mm
- Outside Diameter: 105 mm
- Width: 49 mm
- Basic dynamic load rating: 361 kN
- Basic static load rating: 2170 kN
IKO GE70ES
IKO GE70ES details

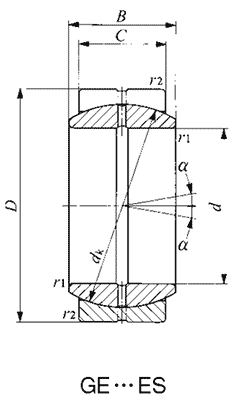

| Identification number | GE70ES |
|---|---|
| Type | Spherical plain bearings |
| Mass | 1.54 kg |
| d | 70 mm |
| D | 105 mm |
| B | 49 |
| C | 40 mm |
| dk | 92 mm |
| r1s min | 1 mm |
| r2s min | 1 mm |
| Permissible tilting angle degree a | 6 |
| Permissible tilting angle degree a1 | 4 |
| Dynamic load capacity | 361 kN |
| Static load capacity | 2170 kN |
IKO GE70ES bearing cross reference
GE160-AX
70 mmx 105 mmx 49 mm
GE140-AX
70 mmx 105 mmx 49 mm
GE70-AX
70 mmx 105 mmx 49 mm
GE60-AX
70 mmx 105 mmx 49 mm
GE50-AX
70 mmx 105 mmx 49 mm
GE40-AX
70 mmx 105 mmx 49 mm
GE30-AX
70 mmx 105 mmx 49 mm
GE25-AX
70 mmx 105 mmx 49 mm
GE17-AX
70 mmx 105 mmx 49 mm
GE15-AX
70 mmx 105 mmx 49 mm
GE10-AX
70 mmx 105 mmx 49 mm
