NSK UCP320D1 pillow block bearings
Also known as : UCP320D1
- Shaft Size: 120 mm
- Total Width: 275 mm
- Total Height: 490 mm
- Total Length: 100 mm
- Base to Center Height: 140 mm
NSK UCP320D1

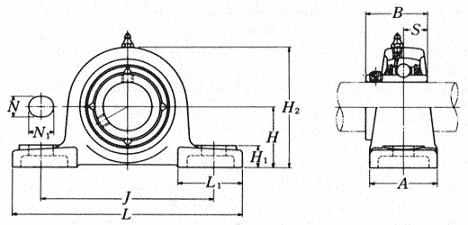

NSK UCP320D1 details
| Unit number | UCP320D1 |
|---|---|
| Bearing number | UC320D1 |
| Housing number | P320D1 |
| Shaft dia. | 100 mm |
| L | 490 mm |
| J | 380 mm |
| H | 140 mm |
| H1 | 50 mm |
| H2 | 275 mm |
| A | 120 mm |
| B | 108 mm |
| S | 42 mm |
| Bolt size | M30 |
| N | 36 mm |
| N1 | 50 mm |
| Cr | 173000 N |
| C0r | 141000 N |
| Mass of unit | 35 kg (approx.) |
NSK UCP320D1 bearing cross reference
UCP326D1
120 mmx 275 mmx490 mm
UCP324D1
120 mmx 275 mmx490 mm
UCP322D1
120 mmx 275 mmx490 mm
UCP321D1
120 mmx 275 mmx490 mm
UCP320D1
120 mmx 275 mmx490 mm
UCP319D1
120 mmx 275 mmx490 mm
UCP318D1
120 mmx 275 mmx490 mm
UCP317D1
120 mmx 275 mmx490 mm
UCP316D1
120 mmx 275 mmx490 mm
UCP315D1
120 mmx 275 mmx490 mm
UCP314D1
120 mmx 275 mmx490 mm
