NSK ZM-UCP209D1 pillow block bearings
Also known as : ZM-UCP209D1
- Shaft Size: 54 mm
- Total Width: 106 mm
- Total Height: 190 mm
- Total Length: 45 mm
- Base to Center Height: 54 mm
NSK ZM-UCP209D1

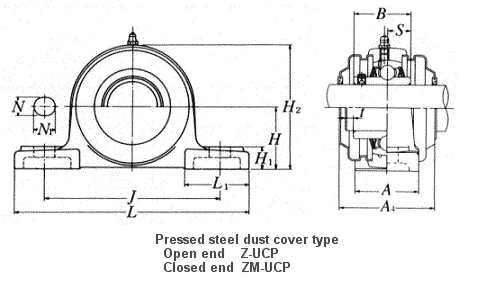

NSK ZM-UCP209D1 details
| Unit number | ZM-UCP209D1 |
|---|---|
| Bearing number | UC209D1 |
| Housing number | P209D1 |
| Shaft dia. | 45 mm |
| L | 190 mm |
| J | 146 mm |
| H | 54 mm |
| H1 | 20 mm |
| H2 | 106 mm |
| A | 54 mm |
| A4 | 69 mm |
| B | 49.2 mm |
| S | 19 mm |
| Bolt size | M14 |
| N | 17 mm |
| N1 | 20 mm |
| Cr | 32500 N |
| C0r | 20400 N |
| Mass of unit | 2.4 kg (approx.) |
