NSK ZM-UCP204D1 pillow block bearings
Also known as : ZM-UCP204D1
- Shaft Size: 38 mm
- Total Width: 65 mm
- Total Height: 127 mm
- Total Length: 20 mm
- Base to Center Height: 33.3 mm
NSK ZM-UCP204D1

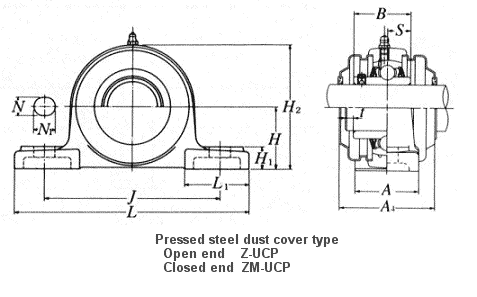

NSK ZM-UCP204D1 details
| Unit number | ZM-UCP204D1 |
|---|---|
| Bearing number | UC204D1 |
| Housing number | P204D1 |
| Shaft dia. | 20 mm |
| L | 127 mm |
| J | 95 mm |
| H | 33.3 mm |
| H1 | 14 mm |
| H2 | 65 mm |
| A | 38 mm |
| A4 | 45 mm |
| B | 31 mm |
| S | 12.7 mm |
| Bolt size | M10 |
| N | 13 mm |
| N1 | 16 mm |
| Cr | 12800 N |
| C0r | 6650 N |
| Mass of unit | 0.7 kg (approx.) |
NSK ZM-UCP204D1 bearing cross reference
UCP326D1
38 mmx 65 mmx127 mm
UCP324D1
38 mmx 65 mmx127 mm
UCP322D1
38 mmx 65 mmx127 mm
UCP321D1
38 mmx 65 mmx127 mm
UCP320D1
38 mmx 65 mmx127 mm
UCP319D1
38 mmx 65 mmx127 mm
UCP318D1
38 mmx 65 mmx127 mm
UCP317D1
38 mmx 65 mmx127 mm
UCP316D1
38 mmx 65 mmx127 mm
UCP315D1
38 mmx 65 mmx127 mm
UCP314D1
38 mmx 65 mmx127 mm
