NSK C-UCP306D1 pillow block bearings
Also known as : C-UCP306D1
- Shaft Size: 50 mm
- Total Width: 105 mm
- Total Height: 180 mm
- Total Length: 30 mm
- Base to Center Height: 50 mm
NSK C-UCP306D1
NSK C-UCP306D1 details

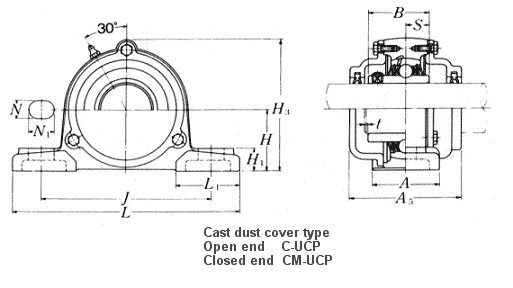

| Unit number | C-UCP306D1 |
|---|---|
| Bearing number | UC306D1 |
| Housing number | P306D1 |
| Shaft dia. | 30 mm |
| L | 180 mm |
| J | 140 mm |
| H | 50 mm |
| H1 | 18 mm |
| H2 | 105 mm |
| A | 50 mm |
| A5 | 85 mm |
| B | 43 mm |
| S | 17 mm |
| Bolt size | M14 |
| N | 17 mm |
| N1 | 20 mm |
| Cr | 26700 N |
| C0r | 15000 N |
| Mass of unit | 2.7 kg (approx.) |
NSK C-UCP306D1 bearing cross reference
UCP326D1
50 mmx 105 mmx180 mm
UCP324D1
50 mmx 105 mmx180 mm
UCP322D1
50 mmx 105 mmx180 mm
UCP321D1
50 mmx 105 mmx180 mm
UCP320D1
50 mmx 105 mmx180 mm
UCP319D1
50 mmx 105 mmx180 mm
UCP318D1
50 mmx 105 mmx180 mm
UCP317D1
50 mmx 105 mmx180 mm
UCP316D1
50 mmx 105 mmx180 mm
UCP315D1
50 mmx 105 mmx180 mm
UCP314D1
50 mmx 105 mmx180 mm
