NSK FR166 Miniature bearing
Also known as : FR166
- Inside Diameter: 4.762 mm
- Outside Diameter: 9.525 mm
- Width: 3.175 mm
- Basic dynamic load rating: 0.71 kN
- Basic static load rating: 0.27 kN
NSK FR166
NSK FR166 details
| NSK number | FR166 |
|---|---|

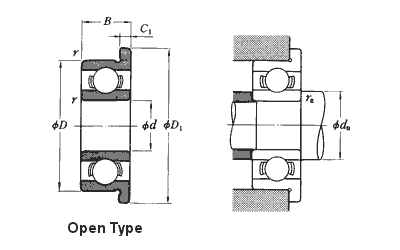

| Type | Miniature ball bearings, Inch Design, With Flange, Open Type |
| d | 4.762 mm |
| D | 9.525 mm |
| D1 | 10.719 mm |
| B | 3.175 mm |
| C1 | 0.584 mm |
| rmin. | 0.1 mm |
| Cr | 710 N |
| C0r | 270 N |
| Limiting speeds | 50000 min-1 (Grease) |
| Limiting speeds | 60000 min-1 (Oil) |
| da | 5.6 mm |
| ra | 0.1 mm |
| Mass | 0.9 g (approx.) |
NSK FR166 bearing cross reference
FR1810
4.762 mmx 9.525 mmx 3.175 mm
FR4
4.762 mmx 9.525 mmx 3.175 mm
FR188
4.762 mmx 9.525 mmx 3.175 mm
FR168
4.762 mmx 9.525 mmx 3.175 mm
FR3
4.762 mmx 9.525 mmx 3.175 mm
FR166
4.762 mmx 9.525 mmx 3.175 mm
FR156
4.762 mmx 9.525 mmx 3.175 mm
FR155
4.762 mmx 9.525 mmx 3.175 mm
FR4
4.762 mmx 9.525 mmx 3.175 mm
FR3ZZ
4.762 mmx 9.525 mmx 3.175 mm
FR155ZZS
4.762 mmx 9.525 mmx 3.175 mm
