NSK R2 Miniature bearing
Also known as : R2
- Inside Diameter: 3.175 mm
- Outside Diameter: 9.525 mm
- Width: 3.967 mm
- Basic dynamic load rating: 0.63 kN
- Basic static load rating: 0.218 kN
NSK R2
NSK R2 details
| NSK number | R2 |
|---|---|

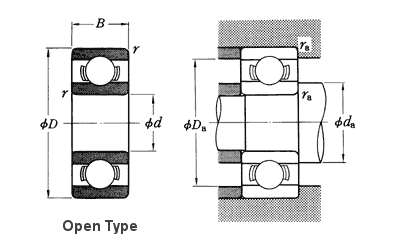

| Type | Miniature ball bearings, Inch Design, Open Type |
| d | 3.175 mm |
| D | 9.525 mm |
| B | 3.967 mm |
| rmin. | 0.3 mm |
| Cr | 630 N |
| C0r | 218 N |
| Limiting speeds | 56000 min-1 (Grease) |
| Limiting speeds | 67000 min-1 (Oil) |
| da | 5.2 mm |
| Da | 7.5 mm |
| ra | 0.3 mm |
| Mass | 1.36 g (approx.) |
NSK R2 bearing cross reference
FR1810
3.175 mmx 9.525 mmx 3.967 mm
FR4
3.175 mmx 9.525 mmx 3.967 mm
FR188
3.175 mmx 9.525 mmx 3.967 mm
FR168
3.175 mmx 9.525 mmx 3.967 mm
FR3
3.175 mmx 9.525 mmx 3.967 mm
FR166
3.175 mmx 9.525 mmx 3.967 mm
FR156
3.175 mmx 9.525 mmx 3.967 mm
FR155
3.175 mmx 9.525 mmx 3.967 mm
FR4
3.175 mmx 9.525 mmx 3.967 mm
FR3ZZ
3.175 mmx 9.525 mmx 3.967 mm
FR155ZZS
3.175 mmx 9.525 mmx 3.967 mm
