NSK F635DD Miniature bearing
Also known as : F635DD
- Inside Diameter: 5 mm
- Outside Diameter: 19 mm
- Width: 6 mm
- Basic dynamic load rating: 2.34 kN
- Basic static load rating: 0.885 kN
NSK F635DD
NSK F635DD details
| NSK number | F635DD |
|---|---|

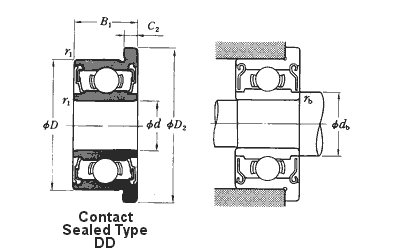

| Type | Miniature ball bearings, Metric design, With Flange, With Two Contact Sealed |
| d | 5 mm |
| D | 19 mm |
| D2 | 22 mm |
| B1 | 6 mm |
| C2 | 1.5 mm |
| r1 min. | 0.30 mm |
| Cr | 2340 N |
| C0r | 885 N |
| Limiting speeds | 30000 min-1 (Grease) |
| da | 8.5 mm |
| rb | 0.30 mm |
| Mass | 9.49 g (approx.) |
