NSK 697VV Miniature bearing
Also known as : 697VV
- Inside Diameter: 7 mm
- Outside Diameter: 17 mm
- Width: 5 mm
- Basic dynamic load rating: 1.61 kN
- Basic static load rating: 0.71 kN
NSK 697VV
NSK 697VV details
| NSK number | 697VV |
|---|---|

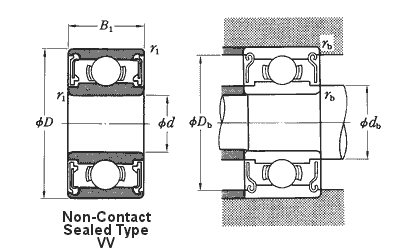

| Type | Miniature ball bearings, Metric design, With Two Non-Contact Sealed |
| d | 7 mm |
| D | 17 mm |
| B1 | 5 mm |
| r1 min. | 0.30 mm |
| Cr | 1610 N |
| C0r | 710 N |
| Limiting speeds | 36000 min-1 (Grease) |
| db | 9.0 mm |
| Db | 14.8 mm |
| rb | 0.30 mm |
| Mass | 5.12 g (approx.) |
