NSK 605DD Miniature bearing
Also known as : 605DD
- Inside Diameter: 5 mm
- Outside Diameter: 14 mm
- Width: 5 mm
- Basic dynamic load rating: 1.33 kN
- Basic static load rating: 0.505 kN
NSK 605DD
NSK 605DD details

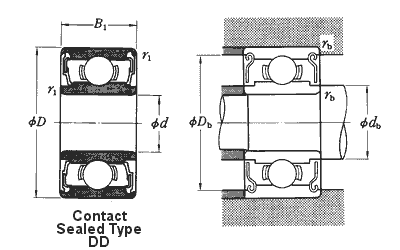

| NSK number | 605DD |
|---|---|
| Type | Miniature ball bearings, Metric design, With Two Contact Sealed |
| d | 5 mm |
| D | 14 mm |
| B1 | 5 mm |
| r1 min. | 0.20 mm |
| Cr | 1330 N |
| C0r | 505 N |
| Limiting speeds | 38000 min-1 (Grease) |
| db | 6.9 mm |
| Db | 12.2 mm |
| rb | 0.20 mm |
| Mass | 3.48 g (approx.) |
