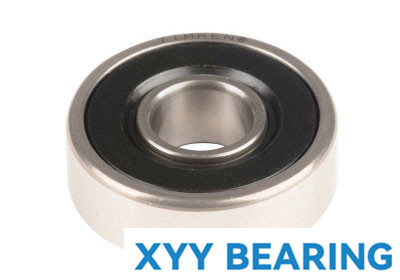

TIMKEN 607-2RS Miniature bearing
Also known as : 607-2RS
- Inside Diameter: 7 mm
- Outside Diameter: 19 mm
- Width: 6 mm
- Basic dynamic load rating: 2.3 kN
- Basic static load rating: 0.89 kN
TIMKEN 607-2RS
TIMKEN 607-2RS details
| Bearing Number | 607-2RS |
|---|---|
| Brand | TIMKEN |
| Type | Miniature ball bearings |
| Bore Size d | 7.000 mm |
| Features | Contact Seals |
| Weight | 0.0070 Kg |
| Outside Diameter D | 19.000 mm |
| Outside Ring Width B | 6.000 mm |
| Radius Rs min | 0.300 mm |
| Cr - Dynamic Load Rating | 2.3 kN |
| C0r - Static Load Rating | 0.89 kN |
| Grease Limiting Speed | 38000 rpm |
| Oil Limiting Speed | 45000 rpm |
