NSK 608T1XZZ1MC5 Miniature bearing
Also known as : 608T1XZZ1MC5, 608ZZMC5, 608-2Z
- Inside Diameter: 8 mm
- Outside Diameter: 22 mm
- Width: 7 mm
- Basic dynamic load rating: 3.3 kN
- Basic static load rating: 1.37 kN
NSK 608T1XZZ1MC5

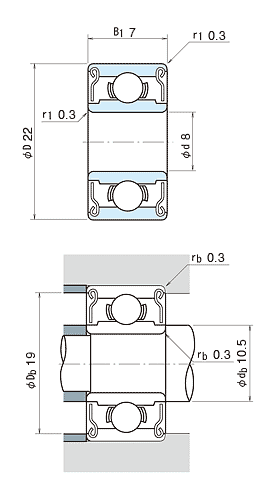

NSK 608T1XZZ1MC5 details
| model | 608T1XZZ1MC5 |
|---|---|
| d | 8 mm |
| D | 22 mm |
| B1 | 7 mm |
| r1 min. | 0.3 mm |
| Cr | 3300 N |
| C0r | 1370 N |
| Limiting speeds | 34000 min-1 (Grease) |
| Mass | 12.2 g (approx.) |
