NSK F636VV Miniature bearing
Also known as : F636VV
- Inside Diameter: 6 mm
- Outside Diameter: 22 mm
- Width: 7 mm
- Basic dynamic load rating: 3.3 kN
- Basic static load rating: 1.37 kN
NSK F636VV

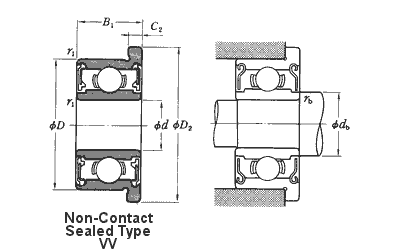

NSK F636VV details
| NSK number | F636VV |
|---|---|
| Type | Miniature ball bearings, Metric design, With Flange, With Two Non-Contact Sealed |
| d | 6 mm |
| D | 22 mm |
| D2 | 25 mm |
| B1 | 7 mm |
| C2 | 1.5 mm |
| r1 min. | 0.30 mm |
| Cr | 3300 N |
| C0r | 1370 N |
| Limiting speeds | 30000 min-1 (Grease) |
| da | 10.5 mm |
| rb | 0.30 mm |
| Mass | 14.70 g (approx.) |
