NSK 698DD Miniature bearing
Also known as : 698DD
- Inside Diameter: 8 mm
- Outside Diameter: 19 mm
- Width: 6 mm
- Basic dynamic load rating: 2.24 kN
- Basic static load rating: 0.91 kN
NSK 698DD
NSK 698DD details

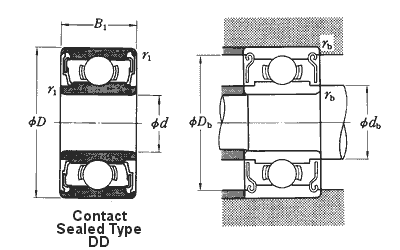

| NSK number | 698DD |
|---|---|
| Type | Miniature ball bearings, Metric design, With Two Contact Sealed |
| d | 8 mm |
| D | 19 mm |
| B1 | 6 mm |
| r1 min. | 0.30 mm |
| Cr | 2240 N |
| C0r | 910 N |
| Limiting speeds | 28000 min-1 (Grease) |
| db | 10.0 mm |
| Db | 16.5 mm |
| rb | 0.30 mm |
| Mass | 7.18 g (approx.) |
