SKF FYT3/4RM pillow block bearings
Also known as :
- Shaft Size: 112 mm
- Total Width: 32.6 mm
- Total Height:
- Total Length: 19.05 mm
SKF FYT3/4RM
SKF FYT3/4RM details
| SKF part number | FYT 3/4 RM | ||
| Included products | |||
| SKF bearing | YAT204-012 | ||
| Housing | FYT504U | ||

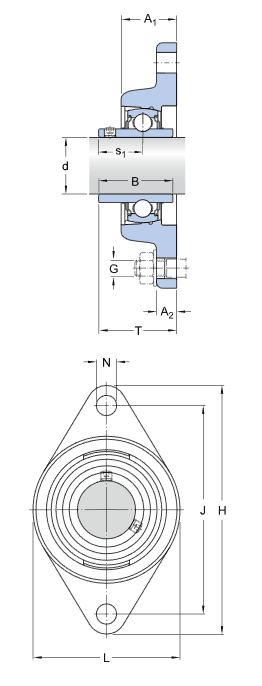

| Dimensions | |||
| d | 19.05 | mm | |
| A1 | 24.61 | mm | |
| A2 | 11.11 | mm | |
| B | 25.5 | mm | |
| H | 111.9 | mm | |
| J | 89.7 | mm | |
| L | 60.5 | mm | |
| N | 11.1 | mm | |
| s1 | 18.3 | mm | |
| T | 32.6 | mm | |
| Calculation data | |||
| Basic dynamic load rating | C | 12.7 | kN |
| Basic static load rating | C0 | 6.55 | kN |
| Limiting speed | 8500 | r/min | |
| Mass bearing unit | 0.47 | kg | |
| Attachment bolts, recommended metric size | G | 10 | mm |
SKF FYT3/4RM bearing cross reference
FYTB20FM
112 mmx 32.6 mmx
FYC50TF
112 mmx 32.6 mmx
FYRP 1 15/16
112 mmx 32.6 mmx
