SKF NNF5008ADB-2LSV Cylindrical roller bearing
Also known as : NNF5008ADB-2LSV, SL045008pp
- Inside Diameter: 40 mm
- Outside Diameter: 68 mm
- Width: 38 mm
- Basic dynamic load rating: 85.8 kN
- Basic static load rating: 116 kN
SKF NNF5008ADB-2LSV

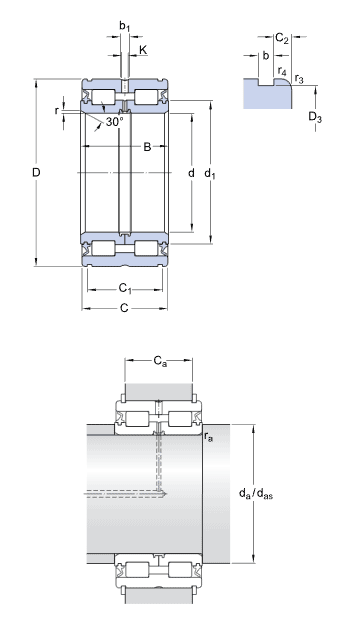

SKF NNF5008ADB-2LSV details
| model | NNF5008ADB-2LSV |
|---|---|
| d | 40 mm |
| D | 68 mm |
| B | 38 mm |
| C | 37 mm |
| d1 | 51.4 mm |
| D3 | 65.8 mm |
| C1 | 32.2 mm |
| C2 | 2.4 mm |
| b | 2.7 mm |
| b1 | 7.5 mm |
| K | 4.5 mm |
| r | 0.8 mm |
| r3,4 min. | 0.6 mm |
| da min | 44 mm |
| das | 49.2 mm |
| Ca1 | 28 mm |
| Ca2 | 27 mm |
| ra max | 0.4 mm |
