FAG NN3024-D-K-TVP-SP-XL

FAG NN3024-D-K-TVP-SP-XL Cylindrical roller bearing

Also known as : NN3024-D-K-TVP-SP-XL

Inside Diameter: 120 mm
Outside Diameter: 180 mm
Width: 46 mm
Basic dynamic load rating: 275 kN
Basic static load rating: 390 kN

FAG NN3024-D-K-TVP-SP-XL

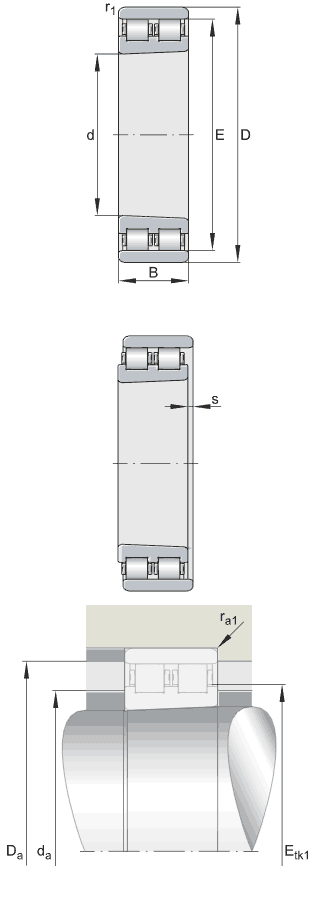

FAG NN3024-D-K-TVP-SP-XL details

Number	NN3024-D-K-TVP-SP-XL
Type	Super precision cylindrical roller bearings Non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage
d	120mm
D	180mm
B	46mm
D_{a max}	168,4mm	Tolerance: H12
d_{a min}	137mm	Tolerance: h12
E	165mm
r_{1 min}	2mm
r_{a1 max}	2mm
s	3,1mm	Axial displacement facility from central position
m	3,72kg	≈ Mass
C_r	275000N	Basic dynamic load rating, radial
C_0r	390000N	Basic static load rating, radial
C_ur	60000N	Fatigue limit load, radial
n_{G Fett}	57001/min	Limiting speed for grease lubrication
n_{G Öl}	67001/min	Limiting speed for minimal quantity oil lubrication
