SKF NCF3004CV Cylindrical roller bearing
Also known as : NCF3004CV, SL183004
- Inside Diameter: 20 mm
- Outside Diameter: 42 mm
- Width: 16 mm
- Basic dynamic load rating: 28.1 kN
- Basic static load rating: 28.5 kN
SKF NCF3004CV

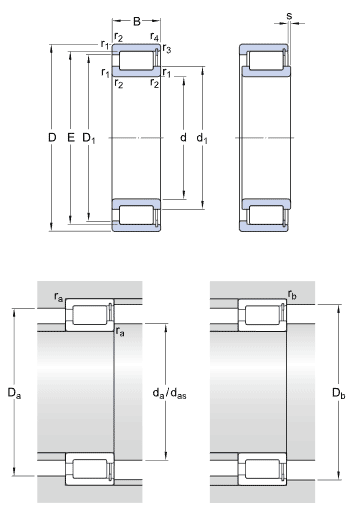

SKF NCF3004CV details
| model | NCF 3004 CV |
|---|---|
| d | 20 mm |
| D | 42 mm |
| B | 16 mm |
| d1 | 29 mm |
| D1 | 33 mm |
| E | 36.81 mm |
| smax | 1.5 mm |
| r1,2 min. | 0.6 mm |
| r3,4 min. | 0.3 mm |
| da min | 24 mm |
| das | 26.9 mm |
| Da max | 38 mm |
| Db max | 39 mm |
| ra max | 0.5 mm |
| rb max | 0.3 mm |
| C | 28.1 kN, Basic dynamic load rating |
| C0 | 28.5 kN, Basic static load rating |
| Pu | 3.1 kN, Fatigue load limit |
| Reference speed | 8500 r/min |
| Limiting speed | 10000 r/min |
| Kr | 0.3, Calculation factor |
| e | 0.3, Limiting value |
| Y | 0.4, Axial load factor |
| Mass | 0.11 kg |
