SKF RNU204ECP Cylindrical roller bearing
Also known as : RNU204ECP, RNU204B-TVP
- Inside Diameter: 26.5 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 28.5 kN
- Basic static load rating: 22 kN
SKF RNU204ECP

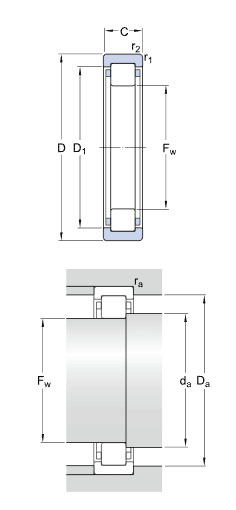

SKF RNU204ECP details
| model | RNU204ECP |
|---|---|
| Fw | 26.5 mm |
| D | 47 mm |
| C | 14 mm |
| D1 | 38.44 mm |
| r1,2 min. | 1 mm |
| da max | 29.7 mm |
| Da max | 41.7 mm |
| ra max | 1 mm |
| C | 28.5 kN, Basic dynamic load rating |
| C0 | 22 kN, Basic static load rating |
| Pu | 2.75 kN, Fatigue load limit |
| Reference speed | 17000 r/min |
| Limiting speed | 19000 r/min |
| Kr | 0.15, Calculation factor |
| e | 0.3, Limiting value |
| Y | 0.6, Axial load factor |
| Mass | 0.084 kg |
SKF RNU204ECP bearing cross reference
NN30/500-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
NN3092-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
NN3088-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
NN3084-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
NN3076-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
NN3072-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
NN3064-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
NN3044-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
NN3040-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
NN3034-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
NN3032-AS-K-M-SP
26.5 mmx 47 mmx 14 mm
