INA RSL182312-A Cylindrical roller bearing
Also known as :
- Inside Diameter: 60 mm
- Outside Diameter: 115.62 mm
- Width: 46 mm
- Basic dynamic load rating: 255 kN
- Basic static load rating: 275 kN
INA RSL182312-A
INA RSL182312-A details
| Part Number | RSL182312-A | |
|---|---|---|
| Brand | INA | |
| Description | Cylindrical roller bearing RSL1823, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, edge radius RV on one side, type RSL18 | |
| Design | A | Internal Variant Cage A |
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 1 | Single-row design |

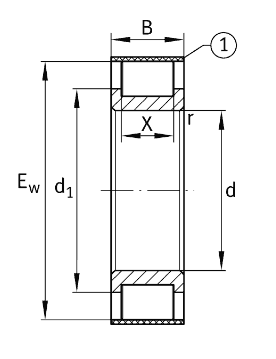

| Main Dimensions & Performance Data | ||
| d | 60 mm | Bore diameter |
| Ew | 115.62 mm | |
| B | 46 mm | Width |
| Cr | 255000 N | Basic dynamic load rating, radial |
| C0r | 275000 N | Basic static load rating, radial |
| Cur | 43500 N | Fatigue load limit, radial |
| nG | 3500 1/min | Limiting speed |
| m | 1.765 kg | Weight |
| Mounting dimensions | ||
| da min | 71.7 mm | Minimum diameter shaft shoulder |
| Dimensions | ||
| r min | 2 mm | Minimum chamfer dimension |
| d1 | 71.7 mm | Maximum rib diameter inner ring |
| Tk | 94.62 mm | pitch circle |
