INA RSL185016-A Cylindrical roller bearing
Also known as :
- Inside Diameter: 80 mm
- Outside Diameter: 116.99 mm
- Width: 60 mm
- Basic dynamic load rating: 290 kN
- Basic static load rating: 440 kN
INA RSL185016-A
INA RSL185016-A details
| Part Number | RSL185016-A | |
|---|---|---|
| Brand | INA | |

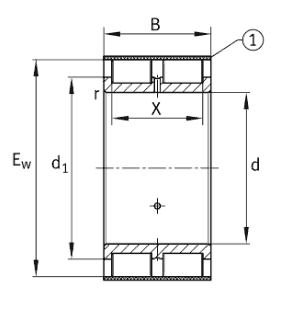

| Description | Cylindrical roller bearing RSL18, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18 | |
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 2 | Double-row design |
| Main Dimensions & Performance Data | ||
| d | 80 mm | Bore diameter |
| Ew | 116.99 mm | |
| B | 60 mm | Width |
| Cr | 290000 N | Basic dynamic load rating, radial |
| C0r | 440000 N | Basic static load rating, radial |
| Cur | 66000 N | Fatigue load limit, radial |
| nG | 3200 1/min | Limiting speed |
| nϑr | 2330 1/min | Reference speed |
| m | 1.8 kg | Weight |
| Mounting dimensions | ||
| da min. | 95 mm | Minimum diameter shaft shoulder |
| Dimensions | ||
| r min. | 1.1 mm | Minimum chamfer dimension |
