INA RSL185015-A Cylindrical roller bearing
Also known as :
- Inside Diameter: 75 mm
- Outside Diameter: 107.9 mm
- Width: 54 mm
- Basic dynamic load rating: 245 kN
- Basic static load rating: 385 kN
INA RSL185015-A
INA RSL185015-A details
| Part Number | RSL185015-A | |
|---|---|---|
| Brand | INA | |
| Description | Cylindrical roller bearing RSL18, full complement roller set, two row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18 | |
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 2 | Double-row design |

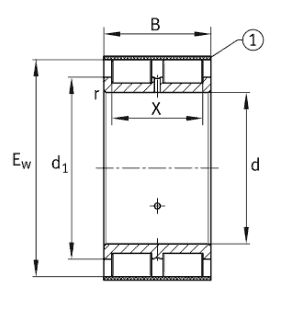

| Main Dimensions & Performance Data | ||
| d | 75 mm | Rib diameter inner ring |
| Ew | 107.9 mm | |
| B | 54 mm | Width |
| Cr | 245 000 N | Basic dynamic load rating, radial |
| C0r | 385 000 N | Basic static load rating, radial |
| Cur | 54 000 N | Fatigue load limit, radial |
| nG | 3450 1/min | Limiting speed |
| m | 1.361 kg | Weight |
| Mounting dimensions | ||
| da min. | 89 mm | Minimum diameter shaft shoulder |
| Dimensions | ||
| r min. | 1.1 mm | Minimum chamfer dimension |
| X | 42 | Raceway width |
INA RSL185015-A bearing cross reference
NN30/500-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
NN3092-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
NN3088-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
NN3084-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
NN3076-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
NN3072-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
NN3064-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
NN3044-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
NN3040-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
NN3034-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
NN3032-AS-K-M-SP
75 mmx 107.9 mmx 54 mm
