INA RSL183013-A-XL Cylindrical roller bearing
Also known as :
- Inside Diameter: 65 mm
- Outside Diameter: 93.09 mm
- Width: 26 mm
- Basic dynamic load rating: 130 kN
- Basic static load rating: 157 kN
INA RSL183013-A-XL
INA RSL183013-A-XL details
| Part Number | RSL183013-A-XL | |
|---|---|---|
| Brand | INA | |
| Description | Cylindrical roller bearing RSL1830..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, edge radius RV on one side, type RSL18 | |
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 1 | Single-row design |

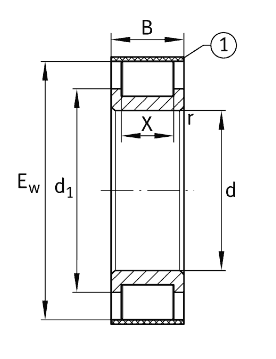

| Main Dimensions & Performance Data | ||
| d | 65 mm | Bore diameter |
| Ew | 93.09 mm | |
| B | 26 mm | Width |
| Cr | 130 000 N | Basic dynamic load rating, radial |
| C0r | 157 000 N | Basic static load rating, radial |
| Cur | 26 500 N | Fatigue load limit, radial |
| nG | 4600 1/min | Limiting speed |
| m | 494.5 g | Weight |
| Mounting dimensions | ||
| da min. | 78.1 mm | Minimum diameter shaft shoulder |
| X | 17 mm | raceway width |
| Dimensions | ||
| r min. | 1.1 mm | Minimum chamfer dimension |
| d1 | 78.1 mm | Maximum rib diameter inner ring |
| Tk | 83.09 mm | pitch circle |
