NTN NJ2307E Cylindrical roller bearing
Also known as : NJ2307E
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 31 mm
- Basic dynamic load rating: 99 kN
- Basic static load rating: 109 kN
NTN NJ2307E
NTN NJ2307E details
| Part Number | NJ2307E |
|---|---|
| Brand | NTN |
| Type | Cylindrical roller bearings NJ type |
| Mass | - kg |
| Boundary dimensions (mm) | |
| Inner dia. (d) | 35 |
| Outer dia. (D) | 80 |
| Width (B) | 31 |
| Chamfer (rs_min) | 1.5 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 99 |
| Static (Cor) | 109 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 10100 |
| Static (Cor) | 11100 |
| Limiting speed (min-1) | |
| Grease | 7200 |
| Oil | 8500 |

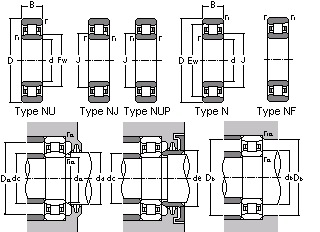

| Abutment and fillet dimensions (mm) | |
| da min | 41.5 |
| Da max | 72 |
| ras max | 1.5 |
NTN NJ2307E bearing cross reference
NN30/500-AS-K-M-SP
35 mmx 80 mmx 31 mm
NN3092-AS-K-M-SP
35 mmx 80 mmx 31 mm
NN3088-AS-K-M-SP
35 mmx 80 mmx 31 mm
NN3084-AS-K-M-SP
35 mmx 80 mmx 31 mm
NN3076-AS-K-M-SP
35 mmx 80 mmx 31 mm
NN3072-AS-K-M-SP
35 mmx 80 mmx 31 mm
NN3064-AS-K-M-SP
35 mmx 80 mmx 31 mm
NN3044-AS-K-M-SP
35 mmx 80 mmx 31 mm
NN3040-AS-K-M-SP
35 mmx 80 mmx 31 mm
NN3034-AS-K-M-SP
35 mmx 80 mmx 31 mm
NN3032-AS-K-M-SP
35 mmx 80 mmx 31 mm
