FAG NN3068-AS-M-SP Cylindrical roller bearing
Also known as : NN3068-AS-M-SP
- Inside Diameter: 340 mm
- Outside Diameter: 520 mm
- Width: 133 mm
- Basic dynamic load rating: 1640 kN
- Basic static load rating: 3250 kN
FAG NN3068-AS-M-SP

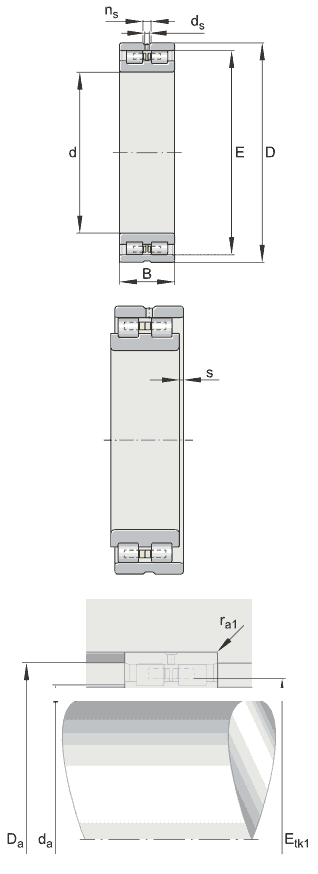

FAG NN3068-AS-M-SP details
| Number | NN3068-AS-M-SP | |
|---|---|---|
| Type | Super precision cylindrical roller bearings main dimensions to DIN 5412-4, non-locating bearing, double row, separable, with cage, reduced radial internal clearance, restricted tolerances | |
| d | 340mm | |
| D | 520mm | |
| B | 133mm | |
| Da max | 483mm | Tolerance: H12 |
| da min | 393mm | Tolerance: h12 |
| ds | 9,5mm | |
| E | 473mm | |
| ns | 17,7mm | |
| r1 min | 5mm | |
| ra1 max | 4mm | |
| s | 8,8mm | Axial displacement facility from central position |
| m | 102kg | ≈ Mass |
| Cr | 1640000N | Basic dynamic load rating, radial |
| C0r | 3250000N | Basic static load rating, radial |
| Cur | 335000N | Fatigue limit load, radial |
| nG Fett | 14701/min | Limiting speed for grease lubrication |
| nG Öl | 17301/min | Limiting speed for minimal quantity oil lubrication |
FAG NN3068-AS-M-SP bearing cross reference
NN30/500-AS-K-M-SP
340 mmx 520 mmx 133 mm
NN3092-AS-K-M-SP
340 mmx 520 mmx 133 mm
NN3088-AS-K-M-SP
340 mmx 520 mmx 133 mm
NN3084-AS-K-M-SP
340 mmx 520 mmx 133 mm
NN3076-AS-K-M-SP
340 mmx 520 mmx 133 mm
NN3072-AS-K-M-SP
340 mmx 520 mmx 133 mm
NN3064-AS-K-M-SP
340 mmx 520 mmx 133 mm
NN3044-AS-K-M-SP
340 mmx 520 mmx 133 mm
NN3040-AS-K-M-SP
340 mmx 520 mmx 133 mm
NN3034-AS-K-M-SP
340 mmx 520 mmx 133 mm
NN3032-AS-K-M-SP
340 mmx 520 mmx 133 mm
