FAG NN3064-AS-M-SP

FAG NN3064-AS-M-SP Cylindrical roller bearing

Also known as : NN3064-AS-M-SP

Inside Diameter: 320 mm
Outside Diameter: 480 mm
Width: 121 mm
Basic dynamic load rating: 1330 kN
Basic static load rating: 2600 kN

FAG NN3064-AS-M-SP

FAG NN3064-AS-M-SP details

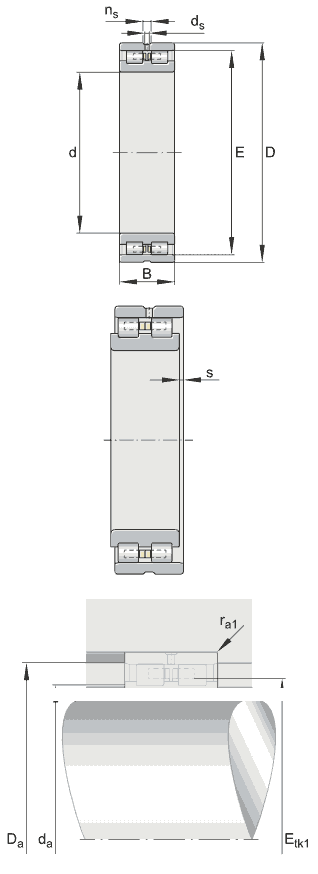

Number	NN3064-AS-M-SP
Type	Super precision cylindrical roller bearings main dimensions to DIN 5412-4, non-locating bearing, double row, separable, with cage, reduced radial internal clearance, restricted tolerances
d	320mm
D	480mm
B	121mm
D_{a max}	447mm	Tolerance: H12
d_{a min}	366mm	Tolerance: h12
d_s	9,5mm
E	438mm
n_s	17,7mm
r_{1 min}	4mm
r_{a1 max}	3mm
s	8mm	Axial displacement facility from central position
m	76,2kg	≈ Mass
C_r	1330000N	Basic dynamic load rating, radial
C_0r	2600000N	Basic static load rating, radial
C_ur	270000N	Fatigue limit load, radial
n_{G Fett}	16101/min	Limiting speed for grease lubrication
n_{G Öl}	18901/min	Limiting speed for minimal quantity oil lubrication
