INA SL192340-TB-BR Cylindrical roller bearing
Also known as : SL192340-TB-BR, NJG2340VH
- Inside Diameter: 200 mm
- Outside Diameter: 420 mm
- Width: 138 mm
- Basic dynamic load rating: 2470 kN
- Basic static load rating: 3300 kN
INA SL192340-TB-BR

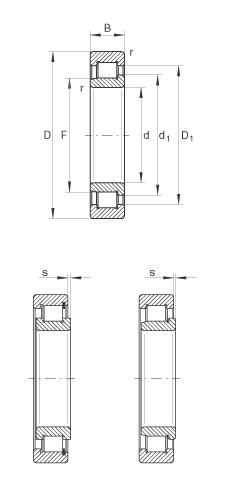

INA SL192340-TB-BR details
| model | SL192340-TB-BR |
|---|---|
| d | 200 mm |
| D | 420 mm |
| B | 138 mm |
| D1 | 347.2 mm |
| d1 | 265.7 mm |
| F | 238.45 mm |
| rmin | 5 mm |
| s | 7 mm, Axial displacement |
| Cr | 2470000 N |
| C0r | 3300000 N |
| Cur | 345000 N, Fatigue limit load, radial |
| Reference speed | 570 1/min |
| Limiting speed | 1020 1/min |
| mass | 92.1 kg |
INA SL192340-TB-BR bearing cross reference
NN30/500-AS-K-M-SP
200 mmx 420 mmx 138 mm
NN3092-AS-K-M-SP
200 mmx 420 mmx 138 mm
NN3088-AS-K-M-SP
200 mmx 420 mmx 138 mm
NN3084-AS-K-M-SP
200 mmx 420 mmx 138 mm
NN3076-AS-K-M-SP
200 mmx 420 mmx 138 mm
NN3072-AS-K-M-SP
200 mmx 420 mmx 138 mm
NN3064-AS-K-M-SP
200 mmx 420 mmx 138 mm
NN3044-AS-K-M-SP
200 mmx 420 mmx 138 mm
NN3040-AS-K-M-SP
200 mmx 420 mmx 138 mm
NN3034-AS-K-M-SP
200 mmx 420 mmx 138 mm
NN3032-AS-K-M-SP
200 mmx 420 mmx 138 mm
